Электросчетчик  постоянного тока

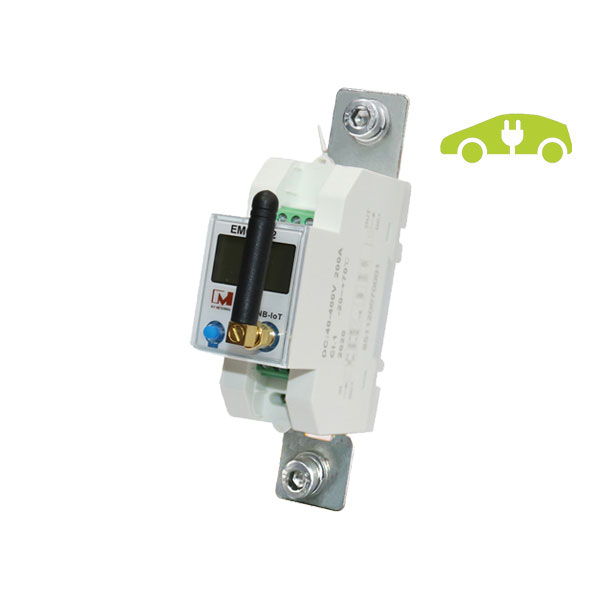

EM613002 NB-IoT (Narrow Band -Internet of Things ) in smart meter

Battery Management Systems (BMS) plays a critical role in most new energy storage technology. The battery energy storage is direct current, and the dc meter is to measure the storage or consumption of the direct current, and it is generally placed at the output of the energy storage battery. In order to ensure the good operation of the battery management system, dc meter is esstential, dc meters can measure and monitor all important dc parameters: voltage, current, power and energy, etc.

EM series include AC meter and DC meter. EM613002 is wireless rs485 din rail dc meter with nb-iot communication. They are widely used in New Energy Field- PV, Solar Power/EV charger; Telecommunication Based Station; Energy Management /Battery Storage System; Power Generation System.


1. Brief introduction

Battery Management Systems (BMS) plays a critical role in most new energy storage technology. The battery energy storage is direct current, and the dc meter measures the storage or consumption of the direct current, and it is generally placed at the output of the energy storage battery. In order to ensure the good operation of the battery management system, dc meter is essential, dc meters can measure and monitor all important dc parameters: voltage, current, power and energy, etc.

EM series includes AC meter and DC meter. EM613002 is a wireless rs485 din rail dc meter with nb-iot communication. They are widely used in the New Energy Field- PV, Solar Power/EV chargers; Telecommunication Based Station; Energy Management /Battery Storage Systems; Power Generation Systems.



2.Function Description

1. Shunt Sampling for DC Measuring, Class 1

2. Measure I, V, kWh (10~240A, 40~400VDC)

3. RS485 Communication with DTL645 Protocol

4. Over-current/voltage Alarm (Programmable)

5. LCD Backlight, Four Tariffs with 8 Time Slots



3. Specifications

M-20200508068

NB-IOT DC Solar Energy Meter

Reference voltage

DC40V-400V

Current

10~240A

Operation temp.

-20℃~+70℃

Accuracy class

Cl.1.0

Average humidity

75%

Relative humidity

95%

Communication

RS485 & NB-IOT Communication

Communication protocol

DTL645

Impulse constant

100 imp/kWh

LCD display

LCD 6+2

Power consumption

≤0.4W,≤8VA

Standard compliant

GB/T 17708-2017

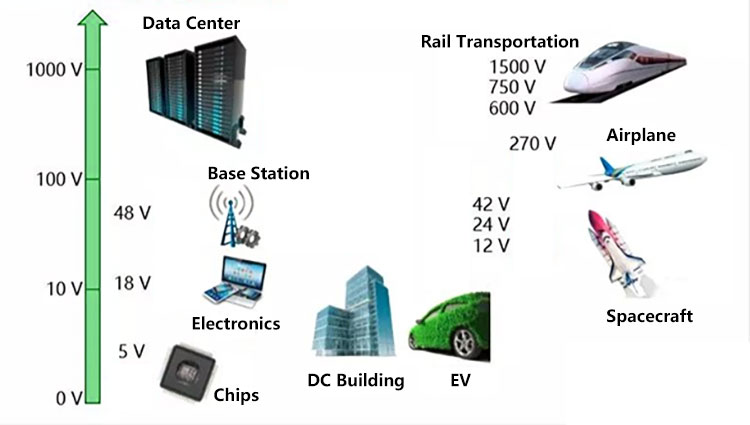

4. Application

EM613002 NB-IoT (Narrow Band -Internet of Things ) in smart meter
