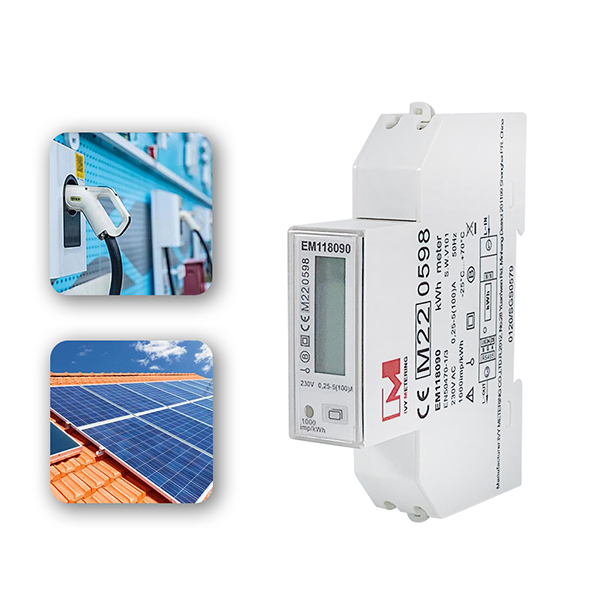

These bi-directional meters from IVY METERING display three readings: Import,export and Net (import deducted from Export). Widely used in the fields of EV charging and PV solar power generation.
1.Introduction

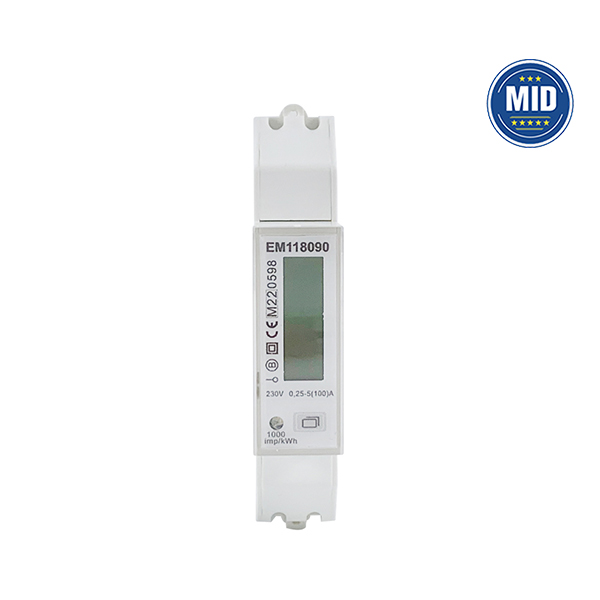

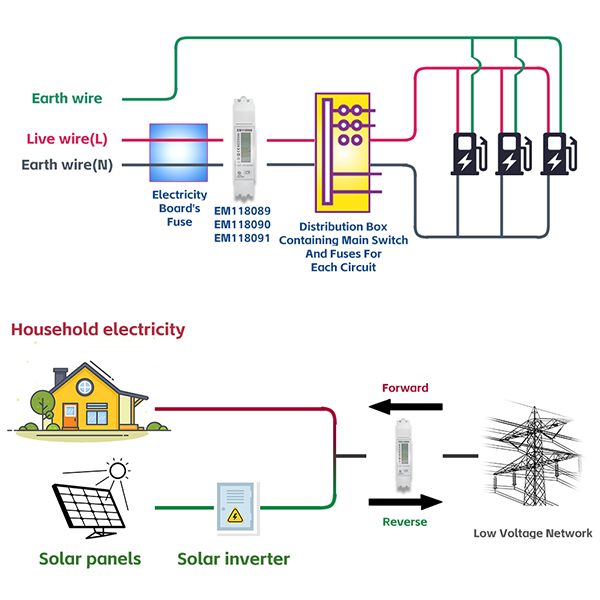

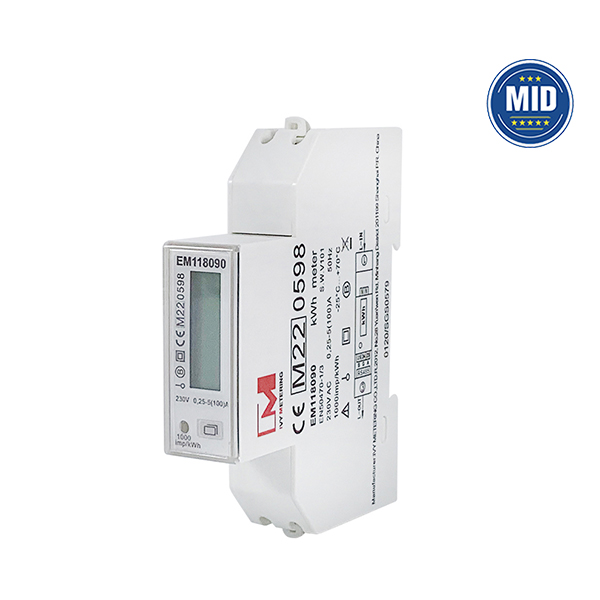

Net metering is an agreement that allows the solar PV system owner to sell excess solar energy to the utility company or buy deficit energy from the utility company using a meter to track this energy exchange. EM118089/90/91-this series of power meter for clean energy, they are compact and performant din rail meter with max current of 100A and optional functions.
These bi-directional meters from IVY METERING display three readings: Import,export and Net (import deducted from Export). Widely used in the fields of EV charging and PV solar power generation.

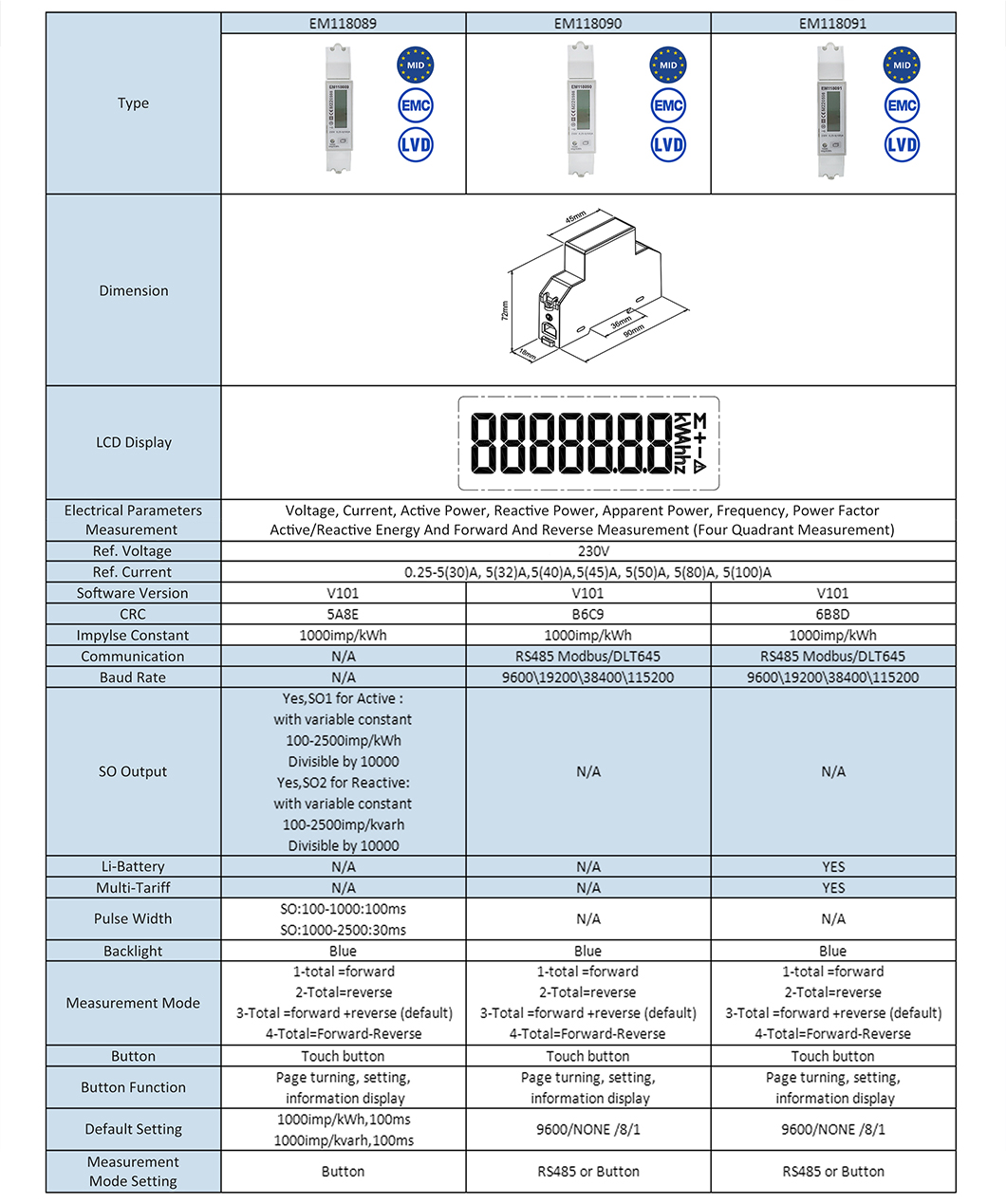

2. Function Description
(1) 0.25(30A/32A/40A/45A/50/60/80/100A)
(2) Wide voltage range, 92V-230V, The lowest voltage can reach 40% of the standard voltage (EM118090)
(3) Active & Reactive, negative & positive Measurement
(4) RS485 Communication, SO Output
(5) Accuracy Class: Class B
(6) LCD Backlight, Multi-tariff, MID Approved, CE-EMC CE-LVD Compliant
