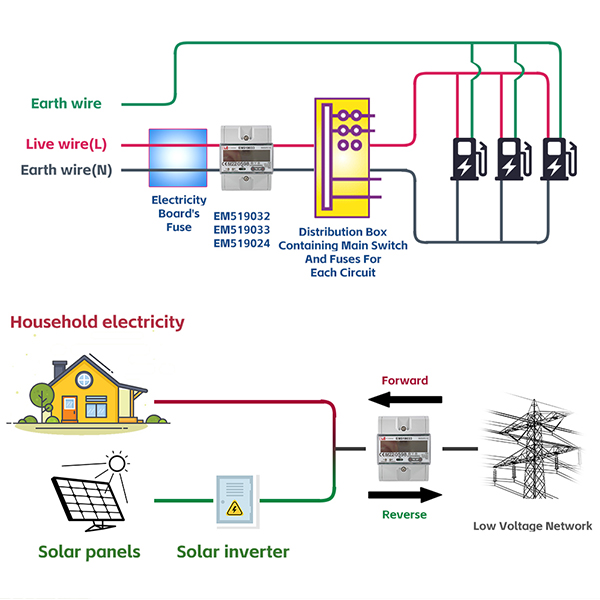

These bi-directional meters from IVY METERING display three readings: Import,export and Net (import deducted from Export). Widely used in the fields of EV charging and PV solar power generation.

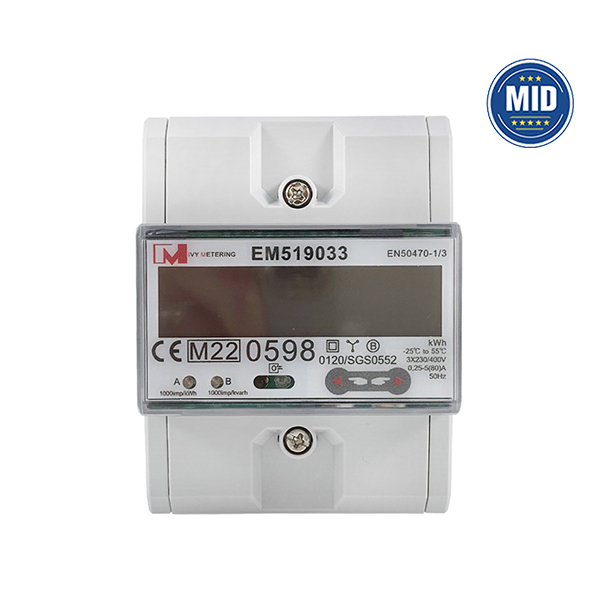

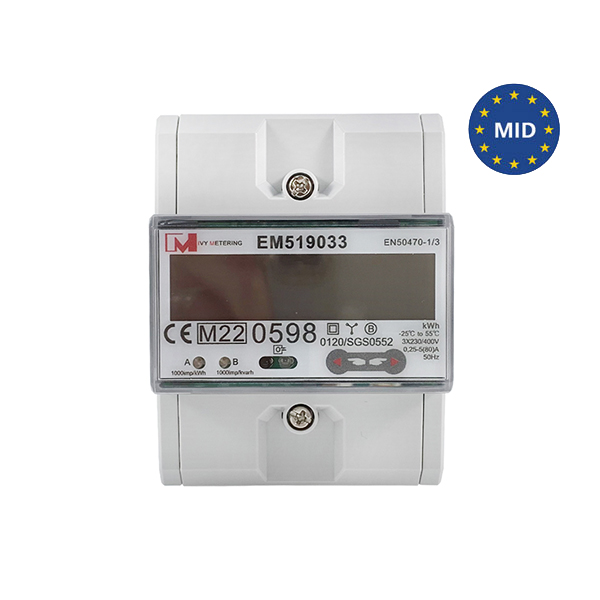

EM519032/33/24 Three Phase DIN Rail AC Energy Meter is the core component of electric vehicle charger power metering and charging. With MID approval, it has bi-directional metering function, supports multi tariff, and can be directly connected with current input up to 80A. Measurement data can be integrated with EV charger management system through Modbus RTU communication protocol, which is widely used in AC wallbox and EV charging piles.
2. Function Description
(2) 3 Measurement mode
(3) Active & Reactive, negative & positive Measurement
(4) IR and RS485 Communication, SO Output
(5) Accuracy Class: Class B
(6) Multi-tariff, MID Approved
(7) Bidirectional Metering
