1. Brief introduction

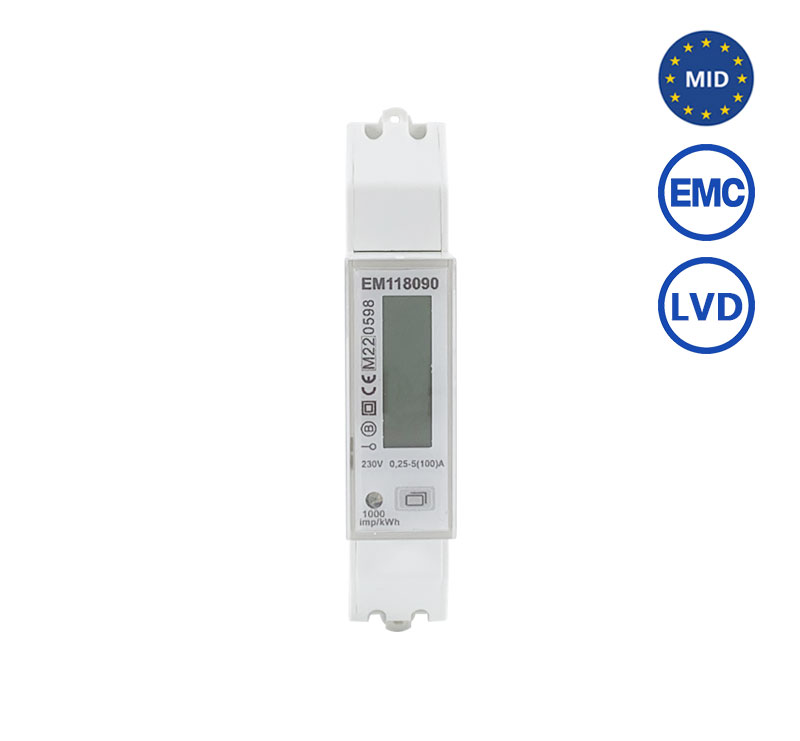

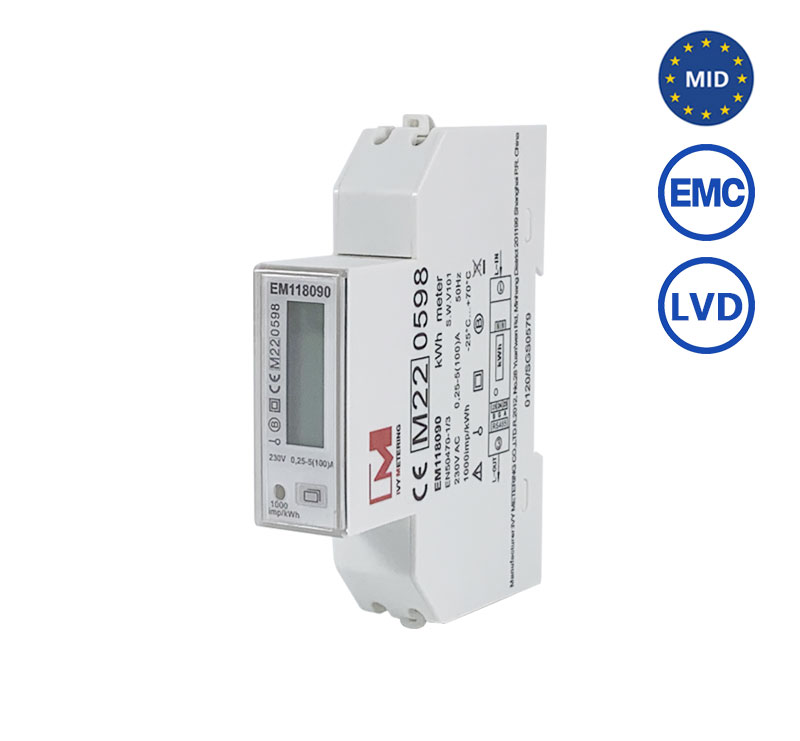

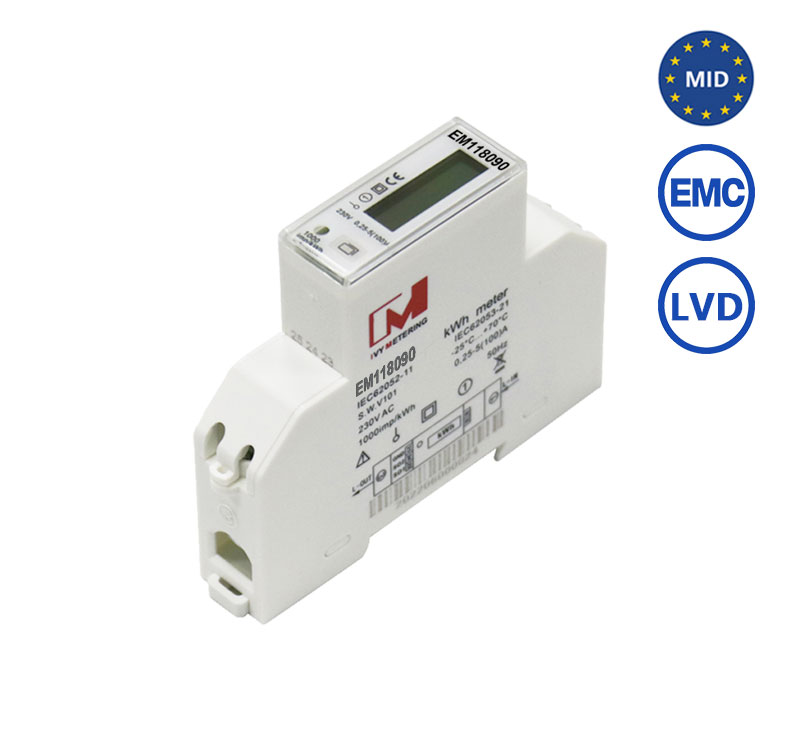

A MID meter is a power meter device that allows you to record the energy consumption of a charging installation or a specific charger in conformity with the Measuring Instruments Directive (MID).The EM118090 is such a single-phase RS485 Modbus energy meter with MID approval.
2. Specification
Voltage | 230V |
Current | 0.25-5(100)A |
Starting Current | 0.4%Ib |
Power Consumption | <1W / <10VA |
Accuracy Class | Active Cl.1.0, Reactive Cl.2.0 |
Frequency | 50Hz/60Hz |
Impulse Constant | 1000imp/kWh |
LCD Display (Backlight) | LCD5+1=99999.9kWh |
Operation Temp. Range | -25～55℃ |
Annual Average Humidity | ≤75% (Non-Condensing) |
Protection Degree | IP51 (Indoor Only) |
Reference Standard | EN50470-1/3,IEC62052-31,IEC61010-1,IEC62052-11 |
SO Output | / |
Communication | RS485(Modbus & DLT645 Protocol) |
Li-battery | / |
Tariff | / |
3. Features
Digital single-phase kilowatt meter, one module 18mm width.
Reduced dimensions for electric panels with space restrictions.
Direct measurement 0.25(30A/32A/40A/45A/50/60/80/100A), 230V
Active & Reactive, Forward & Reverse Bi-directional Measurement
Digital display, 5 digits + 1 decimal non-resettable
RS485 Communication, Modbus and DLT645 Protocol
Opto-isolated pulse output communications.
LED consumption indicator
MID Certificate 0120/SGS0579, CE-EMC, CE-LVD compliant

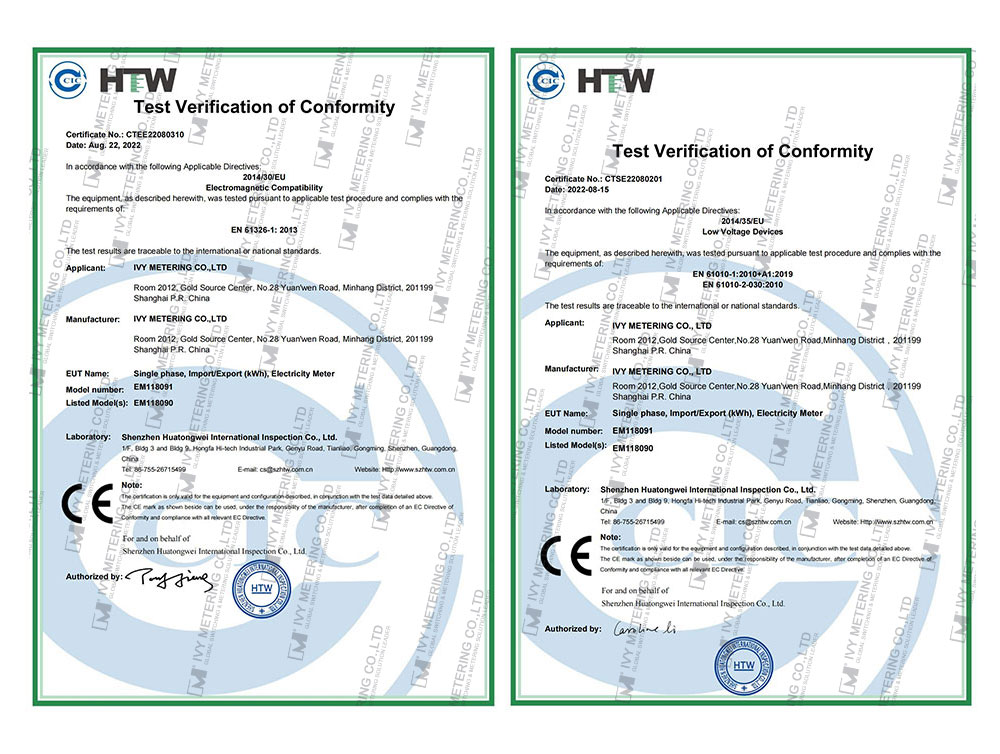

4. Certification
