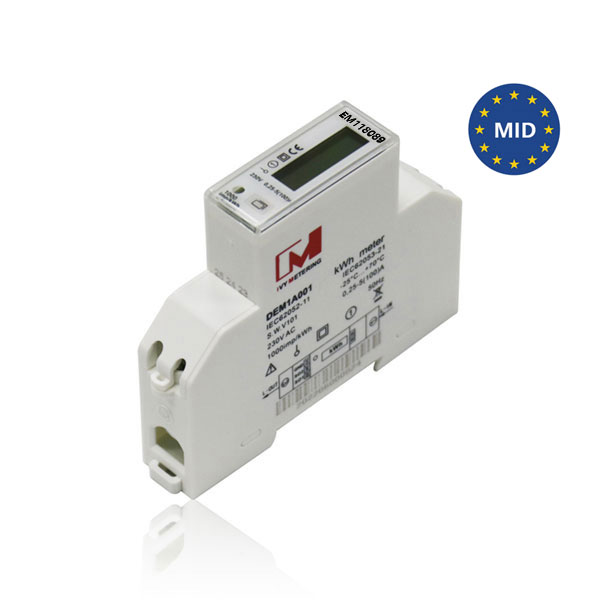

230V 63A or higher kWh Meter MID and RS485 Modbus Smart Meter For Solar Panel EM118089/90/91

CE-MID-approved small DIN Rail mounted 100A 1 phase energy meters, "EM118089/90/91" series meters are designed for DIN-Rail installation, suitable for grid-connected PV solar energy metering projects and EV charging metering solutions, the meters can measure and display various important power parameters, and can be passed through The RS485 communication port reads the data of the meter in real time. The meter has passed the approval of MID, EMC, and LVD. The bi-directional energy measurement makes the meter an excellent choice for solar metering.

1. Introduction

CE-MID-approved small DIN Rail mounted 100A 1 phase energy meters, "EM118089/90/91" series meters are designed for DIN-Rail installation, suitable for grid-connected PV solar energy metering projects and EV charging metering solutions, the meters can measure and display various important power parameters, and can be passed through The RS485 communication port reads the data of the meter in real time. The meter has passed the approval of MID, EMC, and LVD. The bi-directional energy measurement makes the meter an excellent choice for solar metering.


2. Function description

(1)0.25(30A/32A/40A/45A/50/60/80/100A),

(2)Wide voltage range, 92V-230V, The lowest voltage can reach 40% of the standard voltage (EM118090)

(3)Active & Reactive, negative & positive Measurement

(4)RS485 Communication, SO Output

(5)Accuracy Class: Class B

(6) LCD Backlight, Multi-tariff, MID Approved, CE-EMC CE-LVD Compliant

(7) Bidirectional Metering

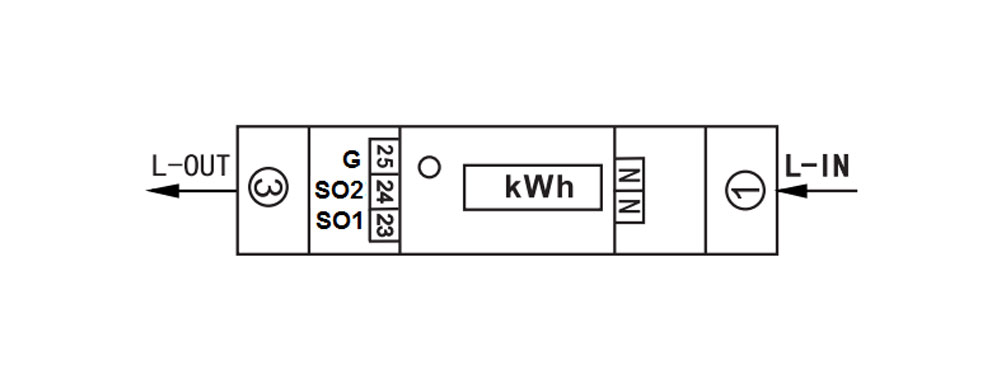

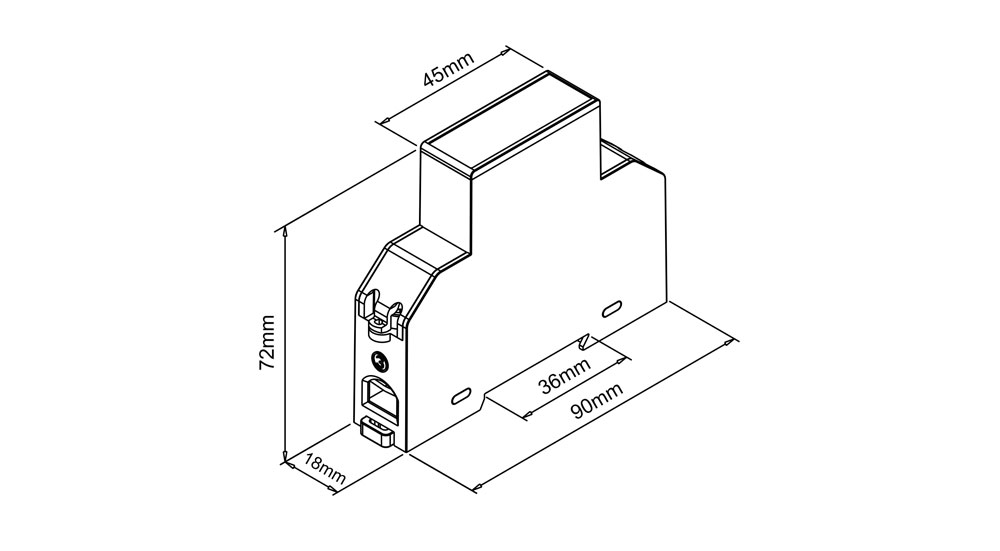

3.Dimension&Diagram

230V 63A or higher kWh Meter MID and RS485 Modbus Smart Meter For Solar Panel EM118089/90/91230V 63A or higher kWh Meter MID and RS485 Modbus Smart Meter For Solar Panel EM118089/90/91
