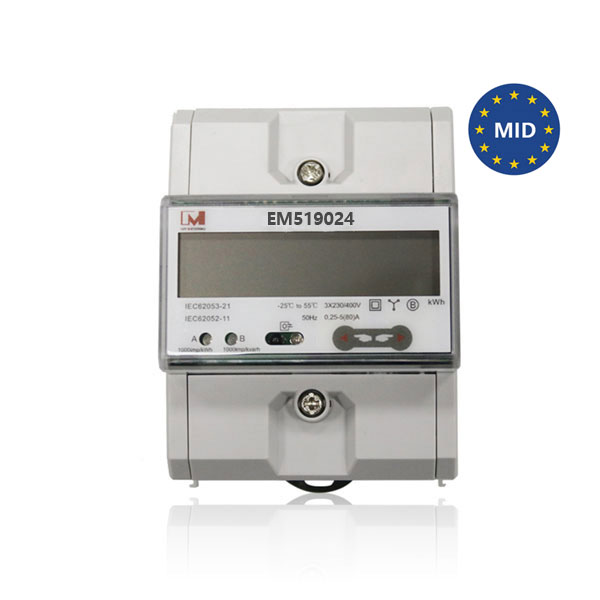

MID Three-Phase Meter Plus Analyzer Multi Tariff RS485 Smart Energy Meter EM519032 33 24

"EM519032/33/24" series meters are designed for DIN-Rail installation, suitable for grid-connected PV solar energy metering projects and EV charging metering solutions, the meters can measure and display various important power parameters, and can be connected through the RS485 communication port Real-time reading of meter data, the meter has passed MID approval, bi-directional energy metering makes this meter an excellent choice for solar energy metering. It can measure three-phase network parameters such as voltage, current, active, reactive and apparent power, power factor, frequency and maximum demand in low voltage.

1.Introduction

"EM519032/33/24" series meters are designed for DIN-Rail installation, suitable for grid-connected PV solar energy metering projects and EV charging metering solutions, the meters can measure and display various important power parameters, and can be connected through the RS485 communication port Real-time reading of meter data, the meter has passed MID approval, bi-directional energy metering makes this meter an excellent choice for solar energy metering. It can measure three-phase network parameters such as voltage, current, active, reactive and apparent power, power factor, frequency and maximum demand in low voltage


2.Features of our Bidirectional meter:

1. The electricity meter has been approved by MID

2. Din Rail Mounted

3. Real time reading of electricity meter data through RS485 communication port

4. Bidirectional energy metering

5. Active/reactive energy and forward and reverse measurement

6. 3 Measurement mode

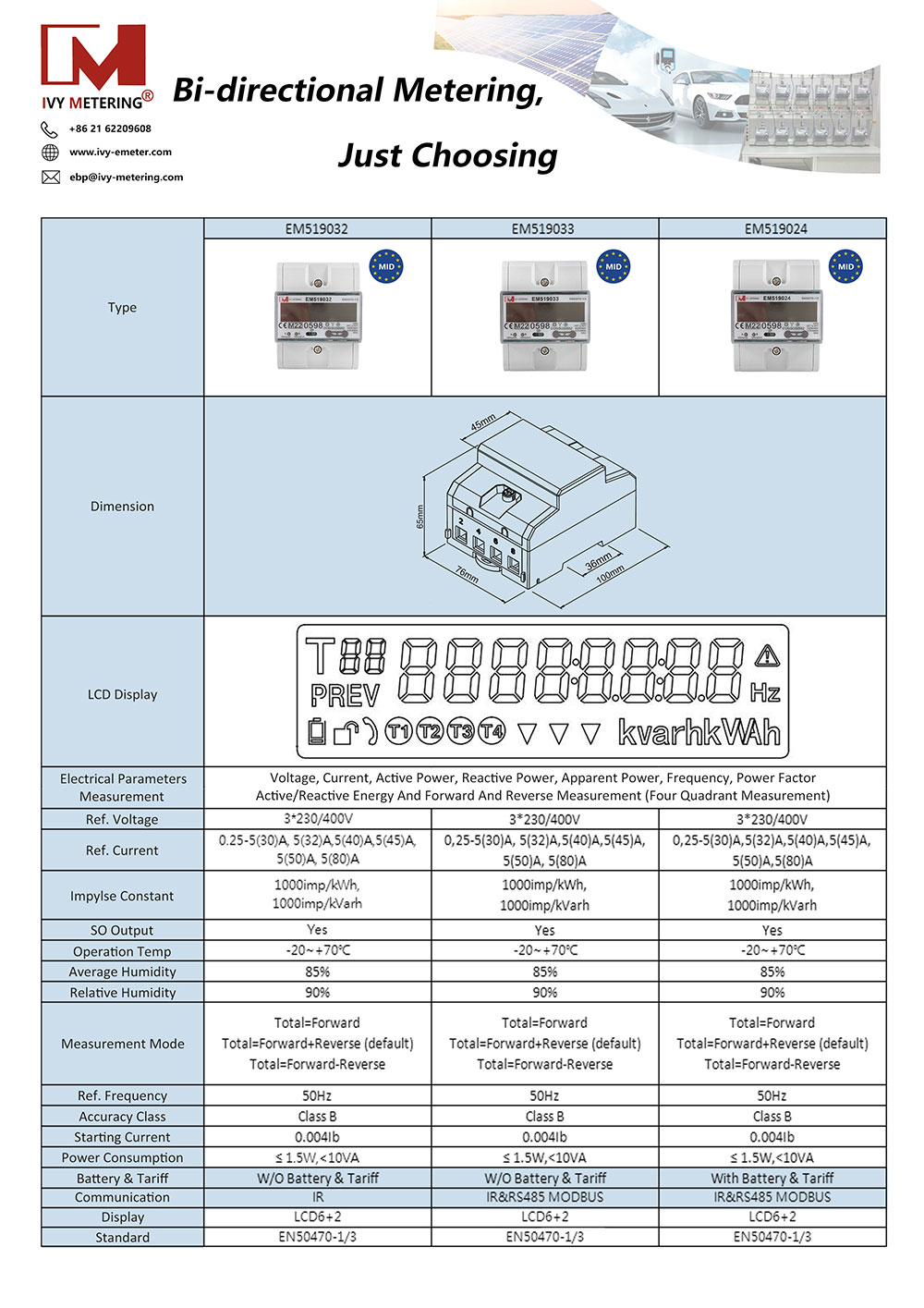

3. Specifications

MID Three-Phase Meter Plus Analyzer Multi Tariff RS485 Smart Energy Meter EM519032 33 24
