Предоплаченный счетчик СТС

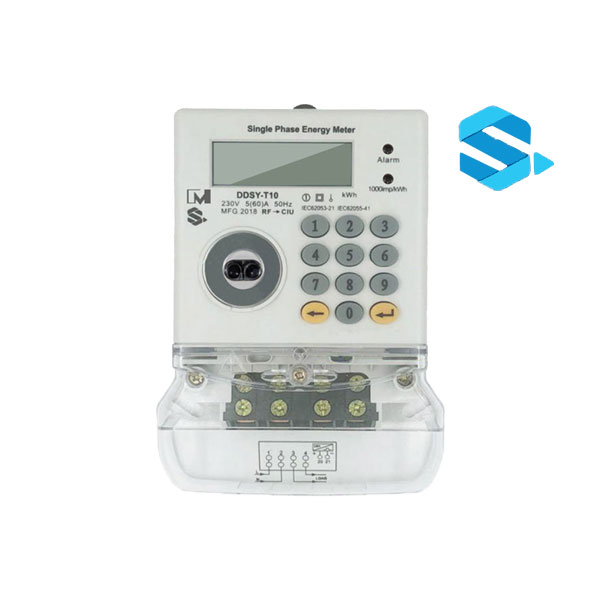

EM124043 Remote Load Control IP54 Keypad Based Meter With STS Certificate RS485 Prepaid Energy Meter IR Power Meter Smart Prepayment Electricity Meter

EM124043 is a Single Phase keypad based BS mounting single phase prepaid/credit meter. it connects with the smart metering system through a plug-in communication module. It is also compliant with STS standard. Users can operate on the keypad to recharge and check account balance.The built-in 120A latching relay will trip when overload, balance exhaustion and tamper detection.As a STS meter, it supports Infrared and RS485 Communication. Thus this meter can be set parameters remotely and achieve firmware upgrade. It can also be used with the CIU for charging and monitoring.

1. Brief introduction

EM124043 is a Single Phase keypad based BS mounting single phase prepaid/credit meter. it connects with the smart metering system through a plug-in communication module. It is also compliant with STS standard. Users can operate on the keypad to recharge and check account balance.The built-in 120A latching relay will trip when overload, balance exhaustion and tamper detection.As a STS meter, it supports Infrared and RS485 Communication. Thus this meter can be set parameters remotely and achieve firmware upgrade. It can also be used with the CIU for charging and monitoring.


2.Function description

(1)Measurement of forward and reverse active energy, voltage, current and power factor

(2)IR and RS485 Communication

(3)STS Certificate

(4)Remote parameters setting and firmware upgrade

(5)Tamper detection via open cover detection

(6)Built-in 120A latching relay

(7)Buzzer alarm when overload or low balance

(8)IP54 outdoor protection

(9)In Home Display/CIU Optional



3. Technical Parameters

M-20181005017

Single Phase STS Meter with IHD/CIU

Voltage

230V(60%~120%Un)

Current

10(80)A

Frequency

50Hz

Impulse Constant

1000imp/kWh

Starting Current

20mA

Accuracy

Cl.1

LCD

LCD6+2=999999.99kW

Power Consumption

<10VA/2W

Operation Temp.

-20~55℃

Maximum Humidity

95%

Standard

IEC62052-11, IEC62053-21, IEC62056-21,

IEC62055-41, IEC62055-51

Protection Degree

IP54
